Filter Housings: Horizontal VS. Vertical Design and Factors Affecting Price

Filter housings are essential components in various industrial applications, serving to separate impurities and contaminants from fluid streams. They are integral in water treatment, oil and gas, pharmaceuticals, and food and beverage industries.

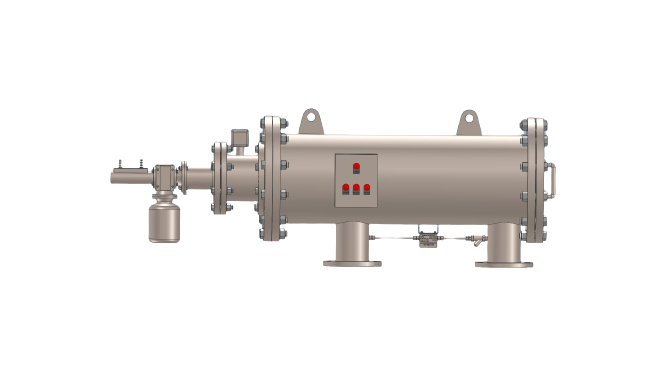

Horizontal Filter Housings

Horizontal filter housings offer distinct advantages over their vertical filter housing counterparts.

Designed for ease of operation, they eliminate the need for overhead hoists, making them ideal for environments with ample space but limited vertical clearance. Their hoizontal orientation allows for single-person operation, facilitating easier maintenance and cartridge replacement.

The Horizontal Filter Housings Advantages

1. Space Efficiency: While requiring a wide workspace horizontally, they make efficient use of floor space compared to vertical housings, which occupy a smaller footprint but extend vertically.

2. High Flow Rates: The horizontal layout provides a larger filtration area, enabling higher flow rates compared to vertical housings. This is beneficial in applications where throughput and flow rate are critical metrics.

3. Low Pressure Drop: When installed in-line, horizontal filter housings typically experience lower pressure drops compared to vertical housings. This is advantageous in maintaining efficient fluid flow and reducing energy consumption.

Vertical Filter Housings

Vertical filter housings are compact and suitable for applications where space is constrained horizontally but vertical height is less of a concern. They are designed to occupy minimal floor space, making them ideal for installations in cramped environments or where multiple housings need to be stacked vertically.

Advantages of Vertical Filter Housings

1. Space Optimization: Vertical housings are optimal when workspace is limited horizontally. They allow for installations in tight spaces or where floor area is at a premium.

2. Ease of Installation: Their compact design simplifies installation, especially in scenarios where multiple housings are required in a confined area. They can be stacked vertically without occupying excessive floor space.

3.Versatility: Vertical housings are versatile and can be adapted to various flow and pressure requirements, making them suitable for a wide range of industrial applications.

Factors Affecting Filter Housing Prices

Several factors influence the pricing of filter housings, including:

Material Body: The material used—such as stainless steel, polypropylene, or specialty alloys—affects both the initial cost and long-term durability of the housing.

Configuration and Design: Complex designs or customized configurations may increase manufacturing costs and, consequently, the price of the housing.

Pressure and Flow Ratings: Housings designed to withstand higher pressures or accommodate larger flow rates often command higher prices due to enhanced engineering and material requirements.

Process Application: Specific industry requirements, such as compliance with regulatory standards or compatibility with certain chemicals or fluids, can influence pricing based on specialized design needs.

Sales and Promotions: Temporary promotions or bulk purchase discounts offered by manufacturers or distributors can affect the overall cost of filter housings.

Condition and Maintenance: Used or refurbished housings may be available at lower prices, depending on their condition and the extent of refurbishment required.

In conclusion, understanding the differences between horizontal and vertical filter housings is crucial for selecting the right equipment based on space constraints, operational needs, and efficiency requirements. Additionally, being aware of the factors influencing filter housing prices allows businesses to make informed decisions that align with their budget and operational objectives. By considering these factors comprehensively, engineers and procurement specialists can ensure optimal performance and cost-effectiveness in their filtration systems.
